Motors for Inventors and Engineers

When we first started in the business we found it extremely difficult to get one or two motors for testing on a variety of applications. Even when we did, the price was exorbitant. Now we use a number of motors made to our specs and sell these bare motors. As few as one can be purchased. All the specs are entered here.

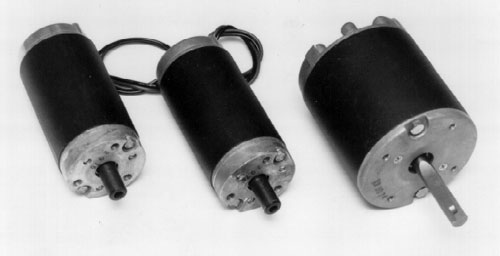

Continuous Duty DC PM (TENV) Totally enclosed Non Ventilated Motors
Models 100 200 200
Part No. 1000032 10000341 10000341
Rpm No Load 3200 2200 4400
Voltage 12V 12V 24V
Peak HP 1.0 2.0 3.0
Max Continuous Current* 30A 40A 20A
Shell Diameter 3" 4.75" 4.75"
Shell Length 6.5" 6.0" 6.0
Wt. (lbs.) 7 13.5 13.5
Shaft Diameter 17MM** .625" .625"
Shaft Length 1.187" 2.75" 2.75"
Bearings Ball/Sleeve Ball/Needle Ball/Needle
Key #3 Woodruff Flat Flat
Stall Torque 50 Lb.in. 110 Lb.in. 200 Lb.in.
Price $447.00 $533.00 $533.00
